Platforms Freemed - Base 40x40 - Baropodometric Platforms/Platforms - Sensor Medica/Base system 40x40 - Escola de Postura ®"

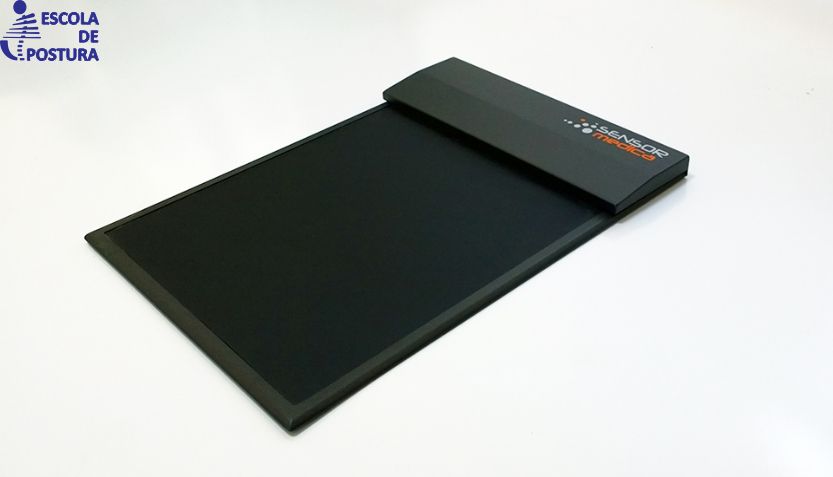

Platforms Freemed - Base 40x40

Sensor Medica - Base system 40x40 - Baropodometric Platforms - Platforms




Descrição

This platform is our basic model: a small device in aluminum, that gives high performances. With a total size of 440X620 mm and a weight of 4 Kg, it provides the specialist a powerful analysis tool.

Alimentation15 Vcc
Current consumption50 mA
Resolution XY2.5 dpi
Resolution Z8 bit
Acquisition frequency400Hz
Type of interfaceUSB 2.0
Dimension440X620 mm
Thickness8 mm
Weight4 kg
Sensorsresistive conductive rubber - contacts 24 K gold
Type of scanningMatrix scan
Calibration10 bit automatic
Suitable temperature working0°C - 55°C
Maximum pressure150N/cm2
Sensor life1.000.000 of cycles
Product CertificationCE
StandardEMCEN 6240-1-2-3
