Platforms Freemed - Professional 180x50 - Baropodometric Platforms/Platforms - Sensor Medica/Professional 180x50 - Escola de Postura ®"

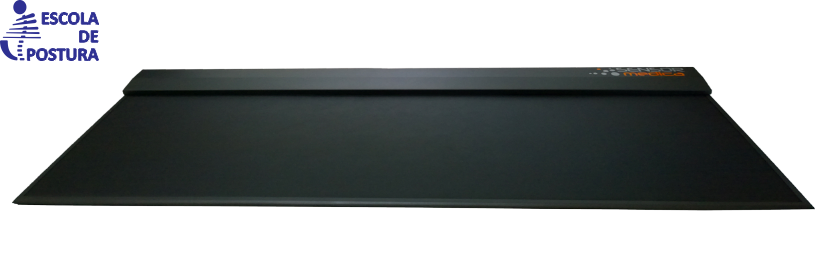

Platforms Freemed - Professional 180x50

Sensor Medica - Professional 180x50 - Baropodometric Platforms - Platforms




Descrição

A version for professionals who need a tool that is able to acquire more clear data data even about the biomechanics of the patient

Alimentation15 Vcc
Current consumption300 mA
Resolution XY2.5 dpi
Resolution Z8 bit
Acquisition frequency200 Hz (400 Hz optional)
Type of interfaceUSB 2.0
Dimension1840x740 mm
Thickness8 mm
Weight/Material16 kg/Steel
Sensorsresistive conductive rubber - contacts 24 K gold
Type of scanningMatrix scan
Calibration10 bit automatic
Suitable temperature working0°C - 55°C
Maximum pressure150N/cm2
Sensor life1.000.000 of cycles
Product CertificationCE
Standard EMCEN 6240-1-2-3
