Platforms Freemed - Maxi 60x50 - Baropodometric Platforms/Platforms - Sensor Medica/Maxi 60x50 - Escola de Postura ®"

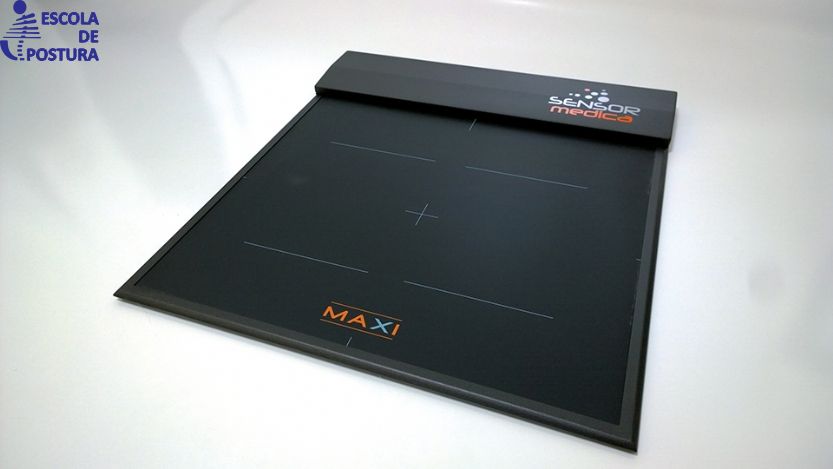

Platforms Freemed - Maxi 60x50

Sensor Medica - Maxi 60x50 - Baropodometric Platforms - Platforms




Descrição

Foot platform in ABS, material that is characterized by lightness and rigidity at the same time. It was designed to provide a larger sensorized surface and give the patient a wider support: with its 3.000 sensors and weighing only 4 kg, it is a high-performance and ultra-lightweight device.

Technical features:
  • Sampling frequency: up to 250 Hz in real time;
  • Material: ABS;
  • 24 K gold sensors –conductive rubber;
  • Thickness: 8 mm;
  • USB 2.0 interface;
  • Alimentation: 15 Vcc;
  • Current consumption: 500 mA;
  • Resolution: 2.5 dpi XY, 8 bit Z;
  • Matrix Scan;
  • 10 bit automatic calibration;
  • Working temperature: 0°C - 55°C;
  • Maximum pressure: 150N/cm2;
  • Sensor life: 1.000.000 of cycles;
  • Product Certification: CE;
  • Standard EMC: EN 6240-1-2-3.
